Design-a-Die System

Design-a-Die

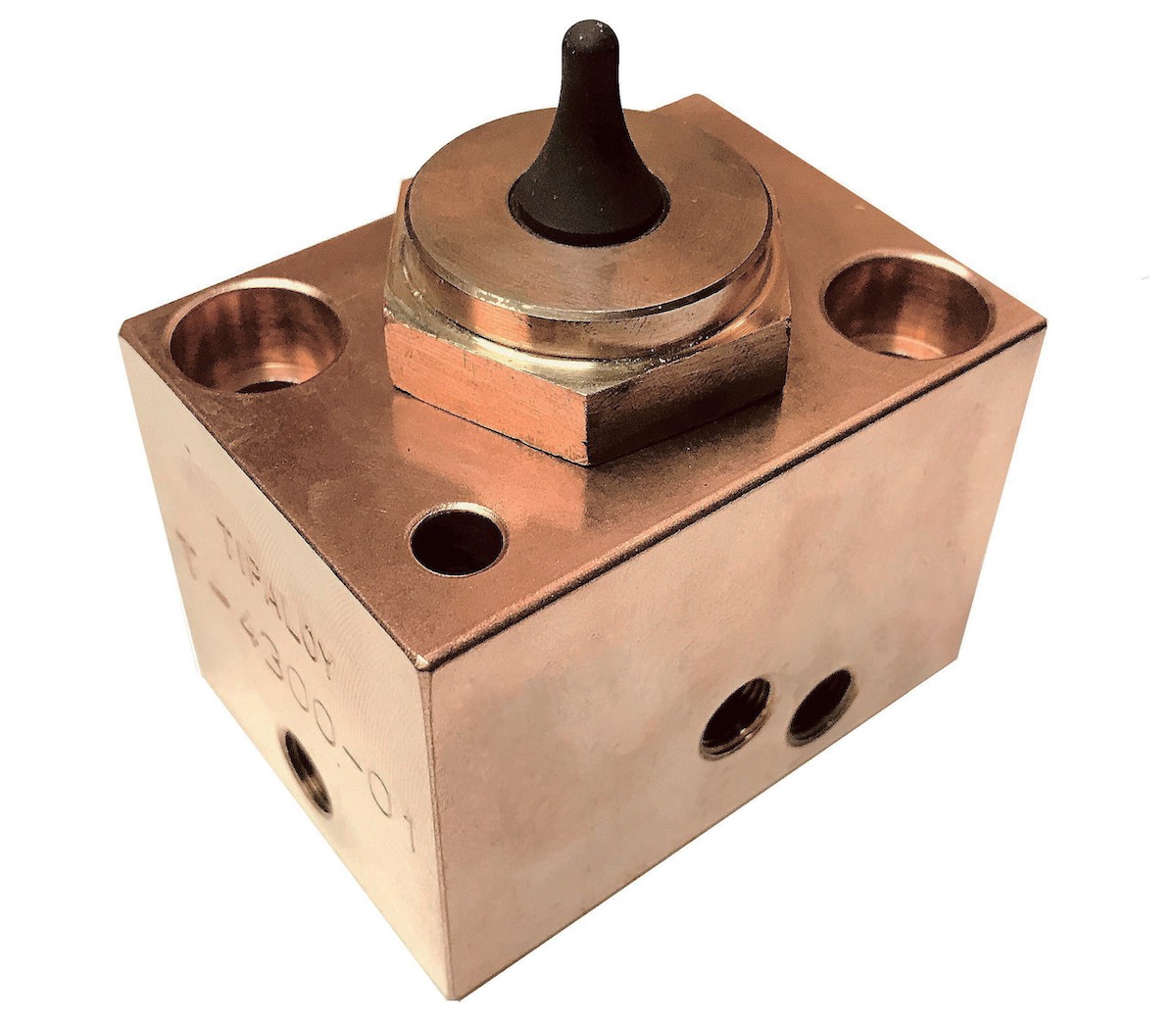

The Tipaloy Design-a-Die System allows you the flexibility to design and implement your own weld fixtures in house, saving you time and money.

  • Designed to be used with stud, nut and spot welding applications
  • Blocks come in two standard sizes
  • Fully ported for air and water
  • Designed to be stackable
  • Available for 200, 300, 400 series TCL heads
  • Available in standard or metric thread sizes
  • Available for TCN heads and pins
  • Can be sued with retractable or fixed pins
  • Great for single or multiple weld applications
Request a Quote

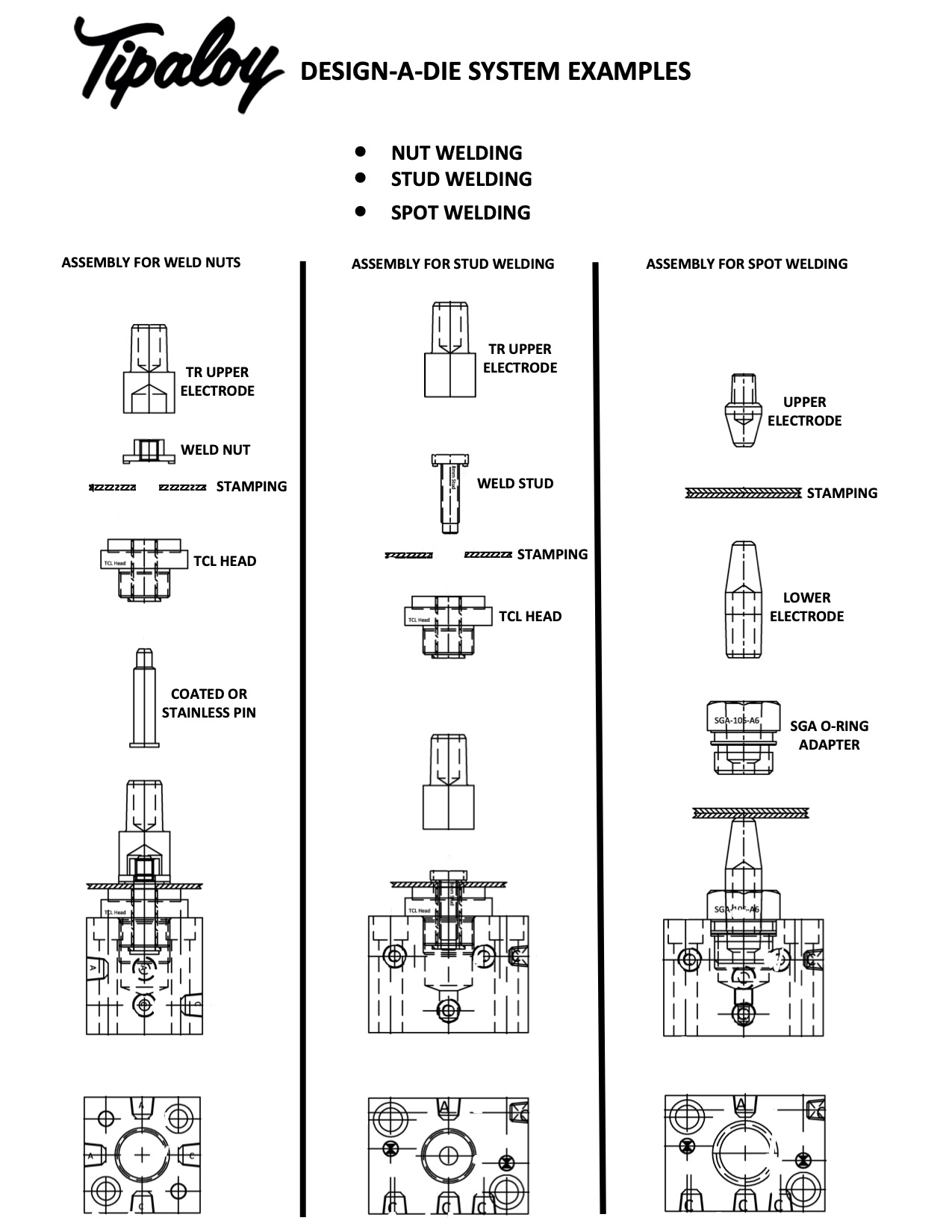

Capabilites

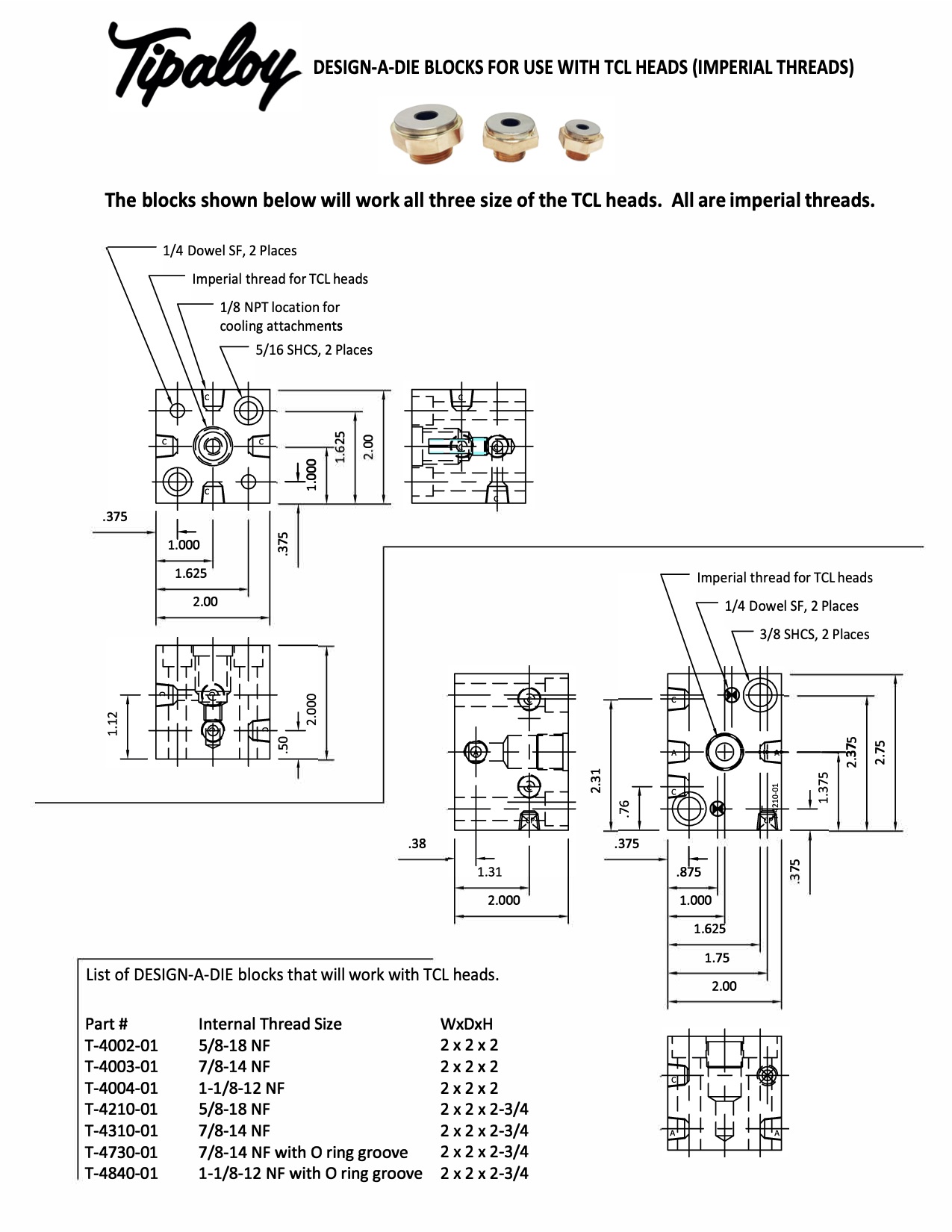

Blocks for TLC Heads

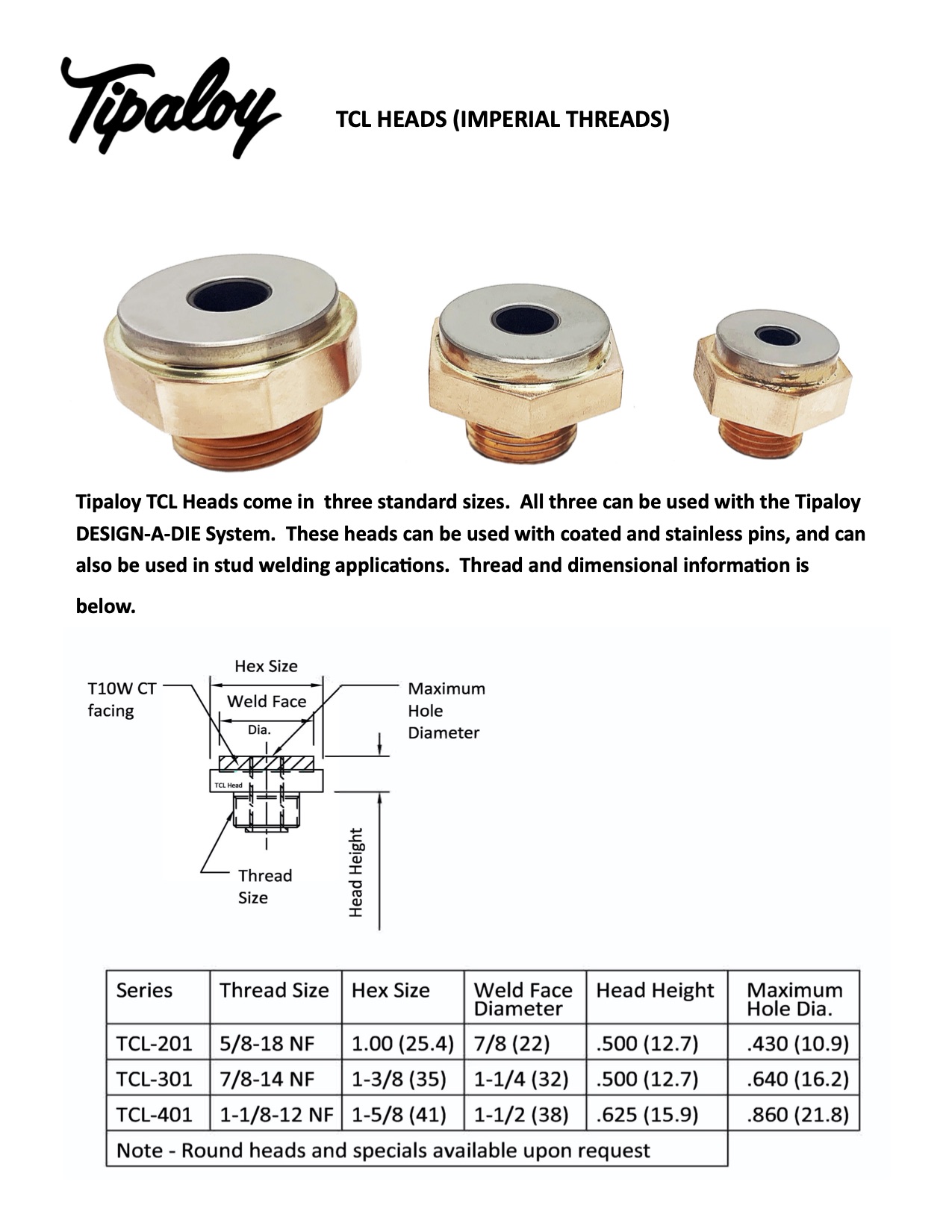

TCL Heads

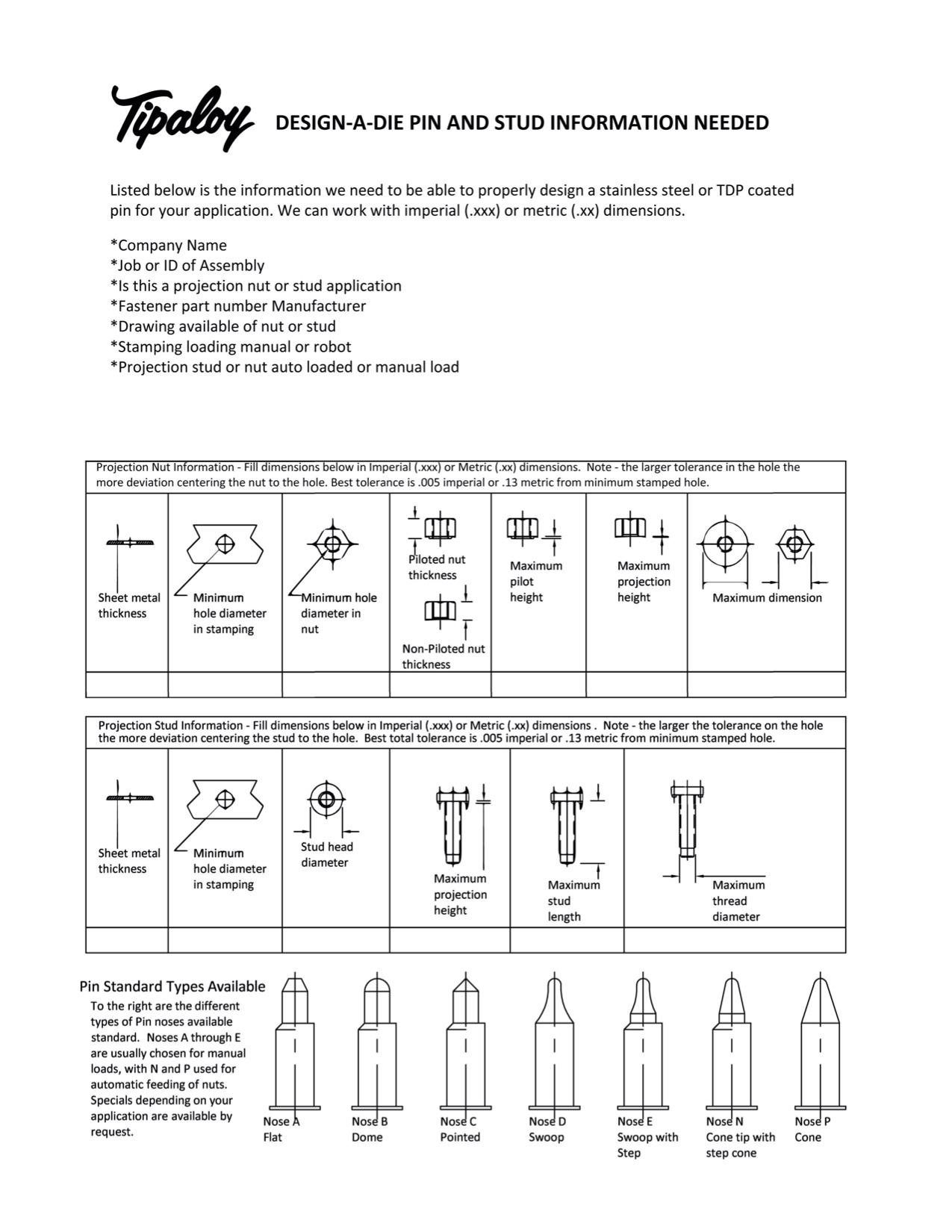

Pin & Stud Information

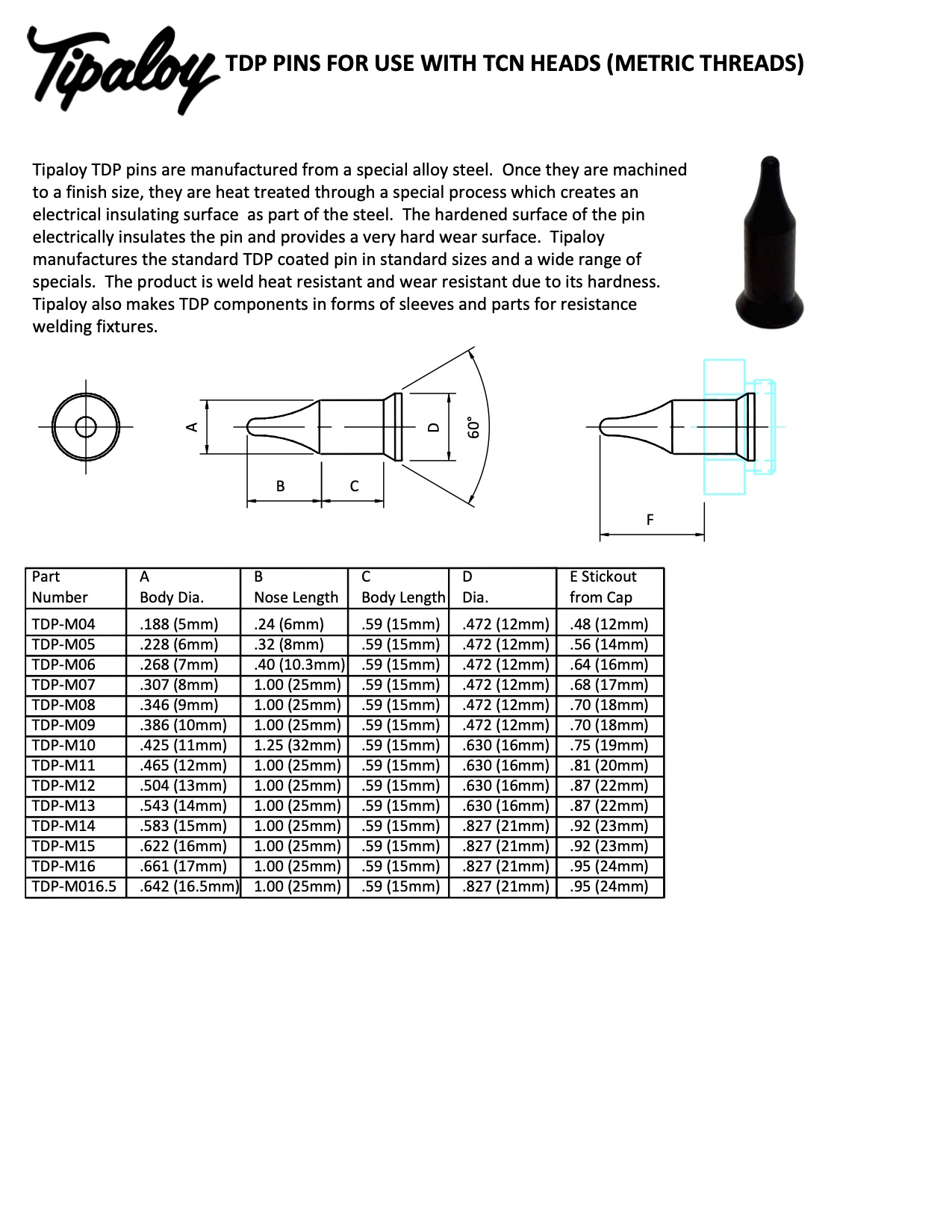

TDP Pins

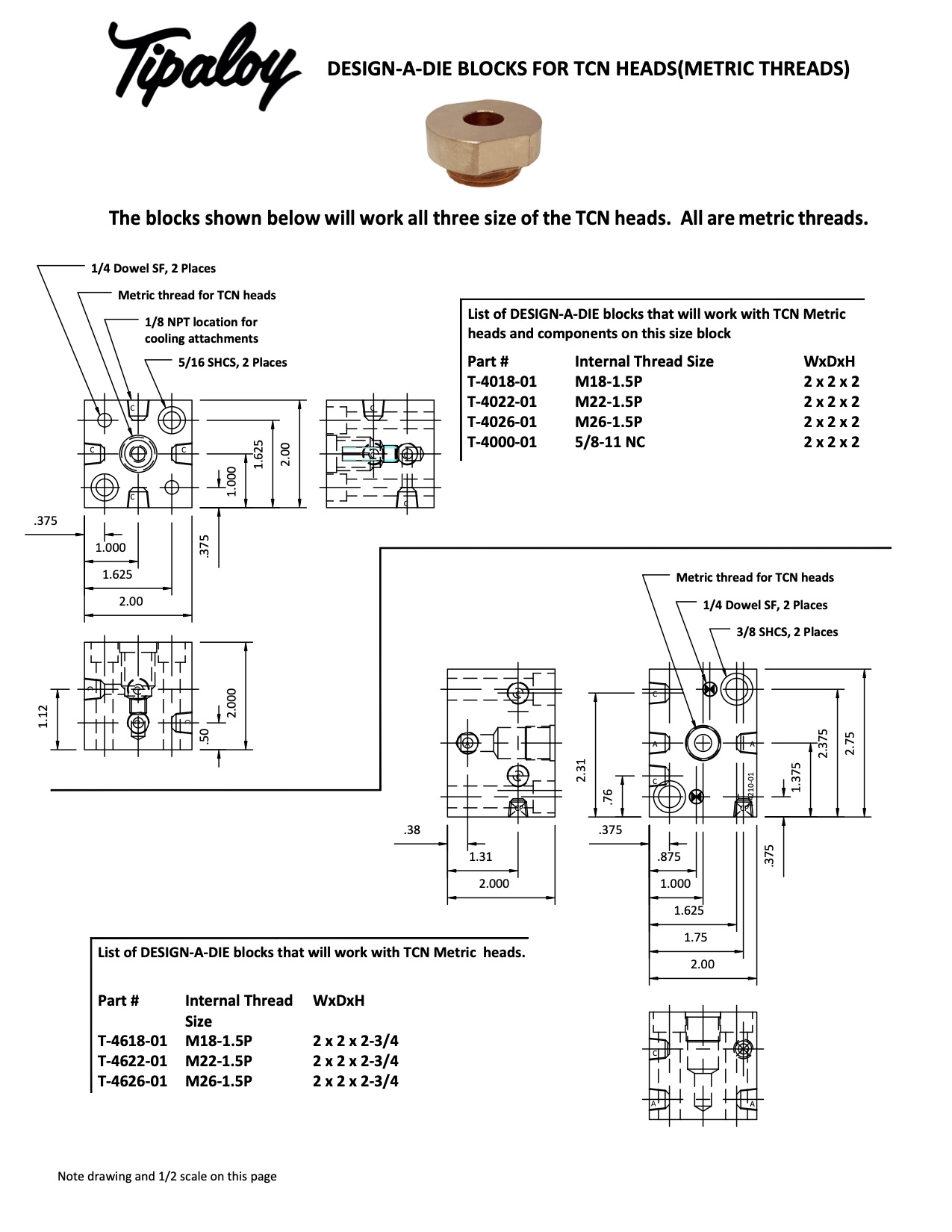

Blocks for TCN Heads

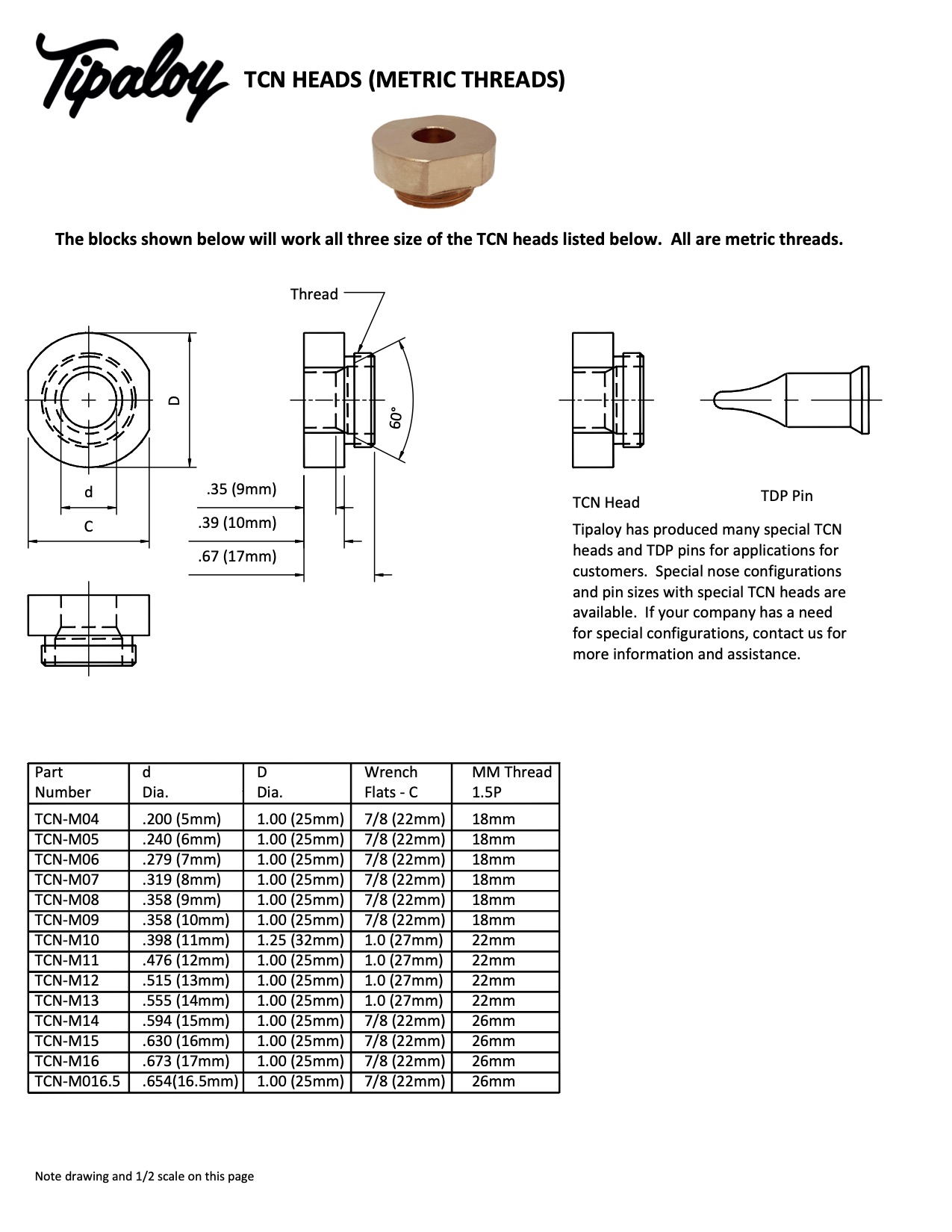

TCN Heads

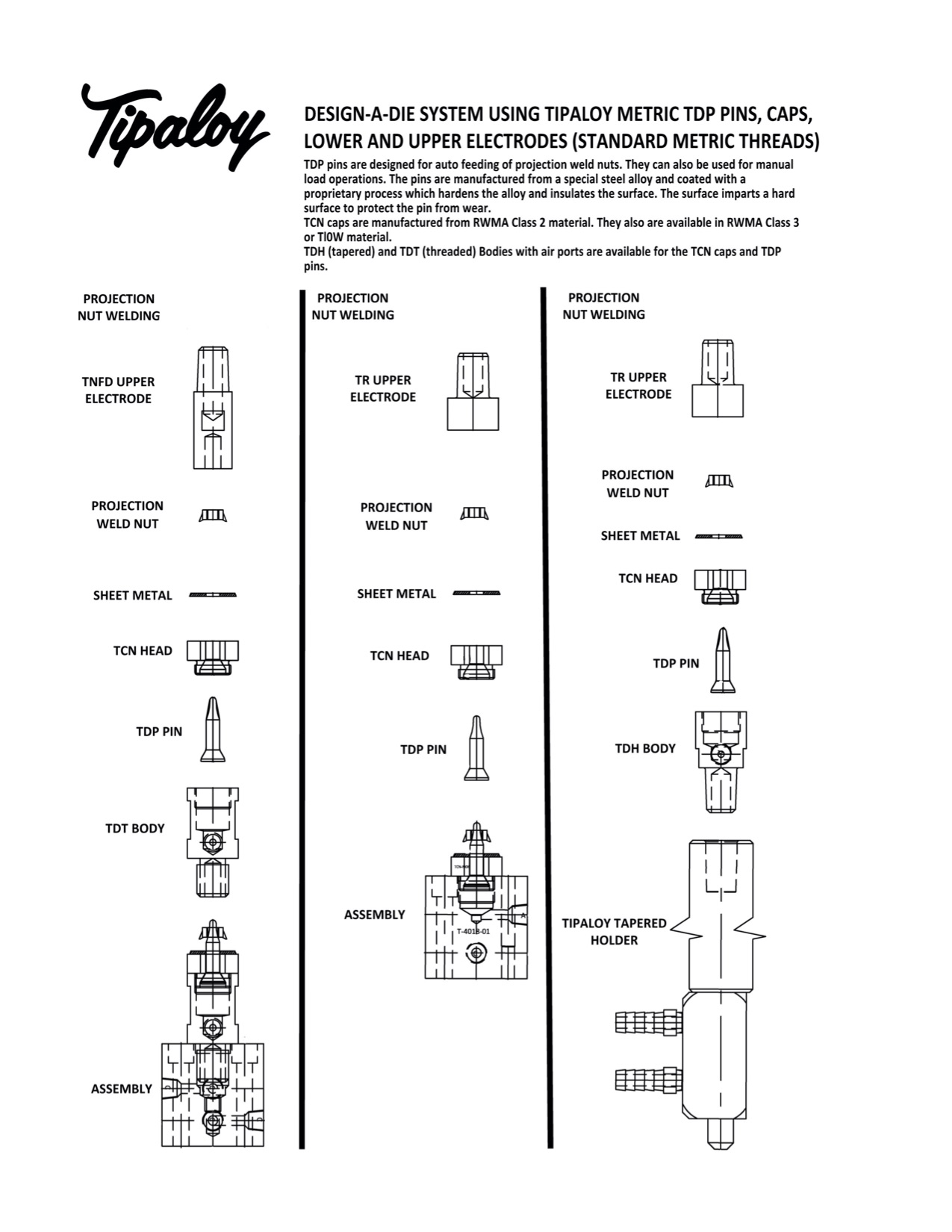

TDP Pins for TCN Heads

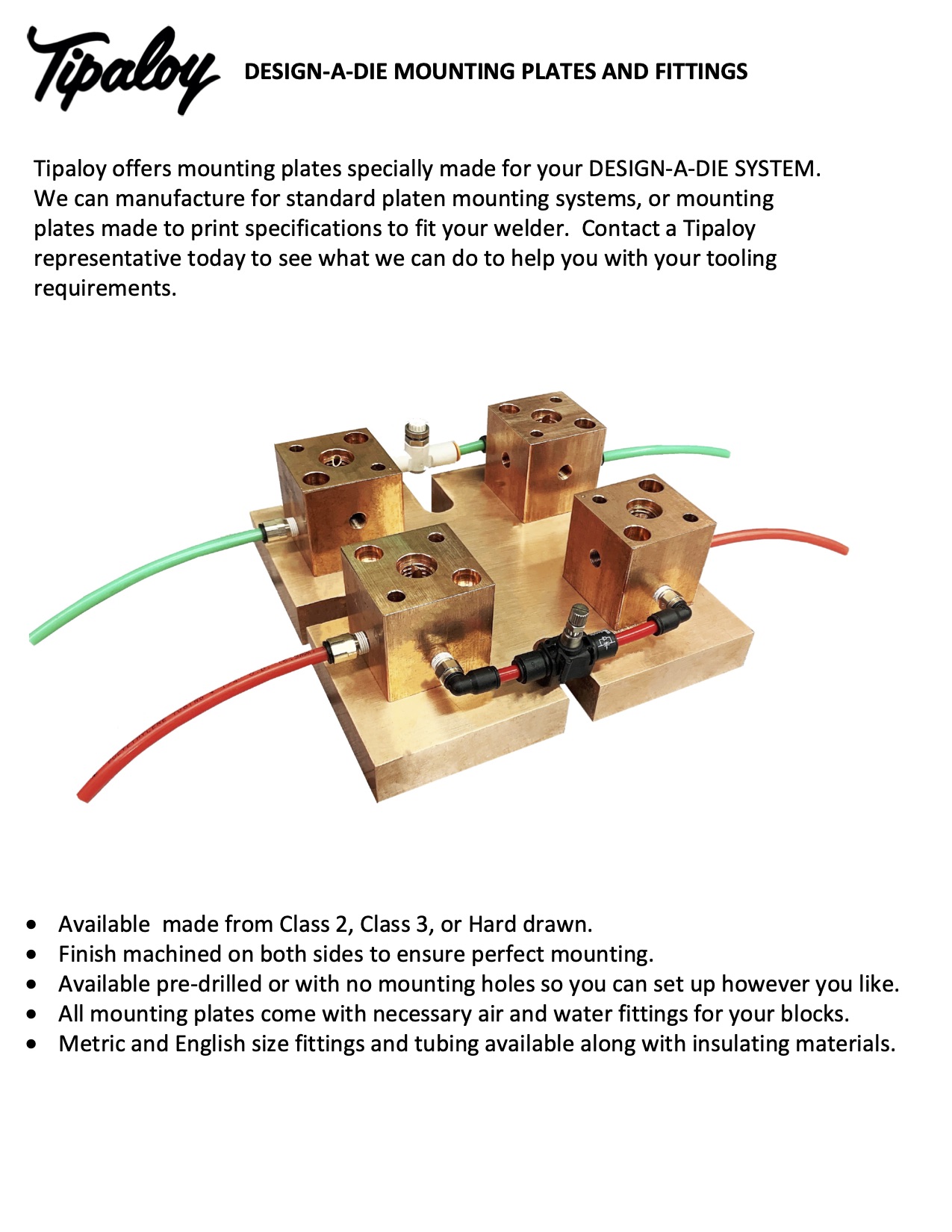

Mounting Plates & Fittings
